Product features
It has excellent thermal stability and processing performance, high thermal deformation temperature and mechanical strength, excellent impact resistance at room and low temperatures, suitable for high-speed extrusion production, and is a commonly used brand in extrusion processing.
Main uses

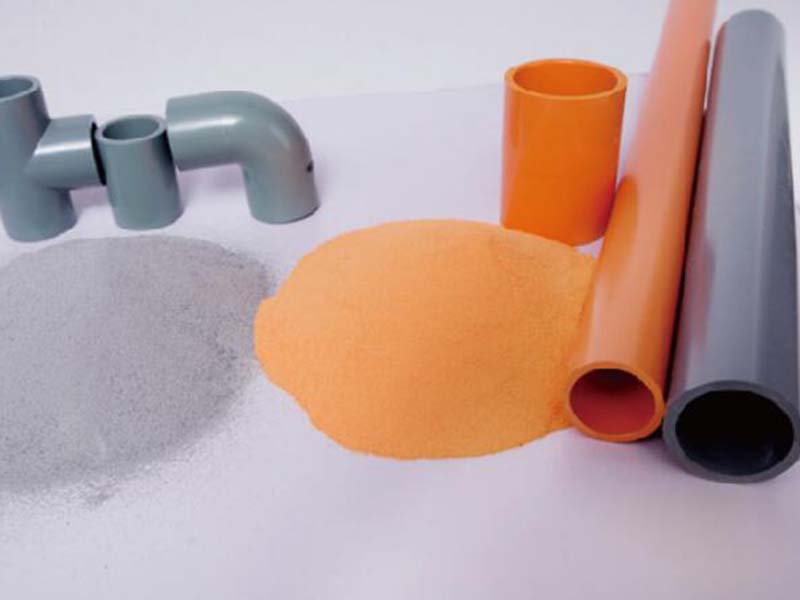

Pipe materials; Pipe fittings and other irregular parts; CPVC Ball Ring Filler: CPVC Power Cable Conduit; Roof and protective wall panels
application area
In high-precision and cutting-edge fields such as aerospace and ocean engineering, electronics and semiconductors, industrial processing, energy and power industries have a wide range of applications and important roles.
packing of products
The small packaging adopts a composite bag of kraft paper and polypropylene woven fabric, with a net content of 25kg per bag; The large packaging adopts polypropylene multi-layer composite woven bags, with a net content of 650kg per bag; In special circumstances, suitable other packaging methods can be adopted according to the agreement between the supply and demand parties.
Storage and transportation
This product is not a hazardous material. It should be stored in a dry and ventilated warehouse, with small packaging stacked no more than 7 layers and large packaging no more than 2 layers, to prevent exposure to sunlight and moisture. Transportation must be carried out using clean and covered means of transportation to prevent exposure to sunlight, rain, and heat.
Test items | unit | C5125 | C5122 | C5117 | C3126 | C5122-0 | C5125 | C5214 | C5204 | C3216 | C55212 |
exterior | powder | powder | powder | powder | Orange powder | granule | granule | granule | granule | Orange particles | |
density | g/cm3 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 | 1.47-1.55 |
Volatile matter | wt% | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Vicat temperature ≥ | ℃ | 115 | 112 | 107 | 116 | 110 | 105 | 104 | 94 | 106 | 102 |
Tensile strength ≥ | MPa | 50 | 50 | 48 | 48 | 48 | 52 | 51 | 46 | 52 | 50 |
Tensile modulus of elasticity ≥ | MPa | 2500 | 2500 | 2400 | 2400 | 2488 | 2500 | 2500 | 2400 | 2500 | 2500 |
Elongation at break ≥ | % | 30 | 30 | 30 | 30 | 30 | 20 | 20 | 20 | 30 | 20 |
Impact strength of simply supported beams ≥ | KJm2 | 20 | 14 | 14 | 16 | 20 | 8 | 13 | 6 | 8 | 14 |
